PY Horizontal High Speed Taping Machine

1000000 INR/Unit

Get a Price/Quote

Product Details:

Product Type Other
Technology Other
Power Source Electricity
Operating Type Automatic
Power 1 HP Horsepower (HP)
Dimension (L*W*H) 4150 X 1400 X 1900 Centimeter (cm)
Weight (kg) 2 Tonne
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PY Horizontal High Speed Taping Machine Price And Quantity

Minimum Order Quantity 1 , , Unit
Price 1000000 INR/Unit

PY Horizontal High Speed Taping Machine Product Specifications

Usage & Applications Used For HDMI usually
Production Capacity 28 meter per minute
Operating Type Automatic
Weight (kg) 2 Tonne
Warranty 3 years
Dimension (L*W*H) 4150 X 1400 X 1900 Centimeter (cm)
Product Type Other
Power 1 HP Horsepower (HP)
Power Source Electricity
Technology Other
Color Blue/ Apple Green/ According to the choice of customer

PY Horizontal High Speed Taping Machine Trade Information

Payment Terms Cash on Delivery (COD), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque, Cash Advance (CA)
Delivery Time 30 Days
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Eastern Europe, Middle East, Asia
Main Domestic Market All India

Product Description

This Taping machine is suitable for DVI, HDMI, ATA, SATA, IEEE1394 etc. It is high frequency data cable single/ double layer taping machine. It is complete hot shrink and self adhesion process by belt synchronous.

Material to be used : Aluminum foil tape, cotton paper tape, transparent tape, mica tape, Teflon tape.

Maximum rotation speed is 2000rpm with the productivity of 28 meter per minute.

Power is 1 HP.

Taping tension and take up tension will be remain constant from start to the end.

It has mobile telescopic hot oven, RKC temperature control, temperature tolerance : 1 degree Celsius.

Take-up and pay-off type : Axle take-up, wire no push/ pull injury qualifying process, row width and row spacing is set according to the specification of wire of arbitrary.

Shaft of Pay of pay-off will be of Dia.300mm to 500mm General shaft.

Shaft of take-up will be of dia. 400mm to 630mm General shaft.

Overall size : 4150 X 1400 X 1900.

Weight of Overall : 2T.

Other Products in 'Taping Machine' category

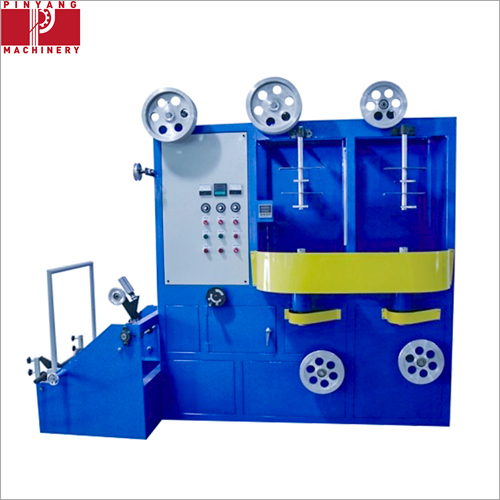

PY-630mm Vertical High Speed Taping Machine Price : 500000 INR/Unit Minimum Order Quantity : 1 Warranty : 3 years Product Type : Other Usage & Applications : Used For HDMI usually
